n+ | Mercedes AMG F1® Bikes
Road Edition

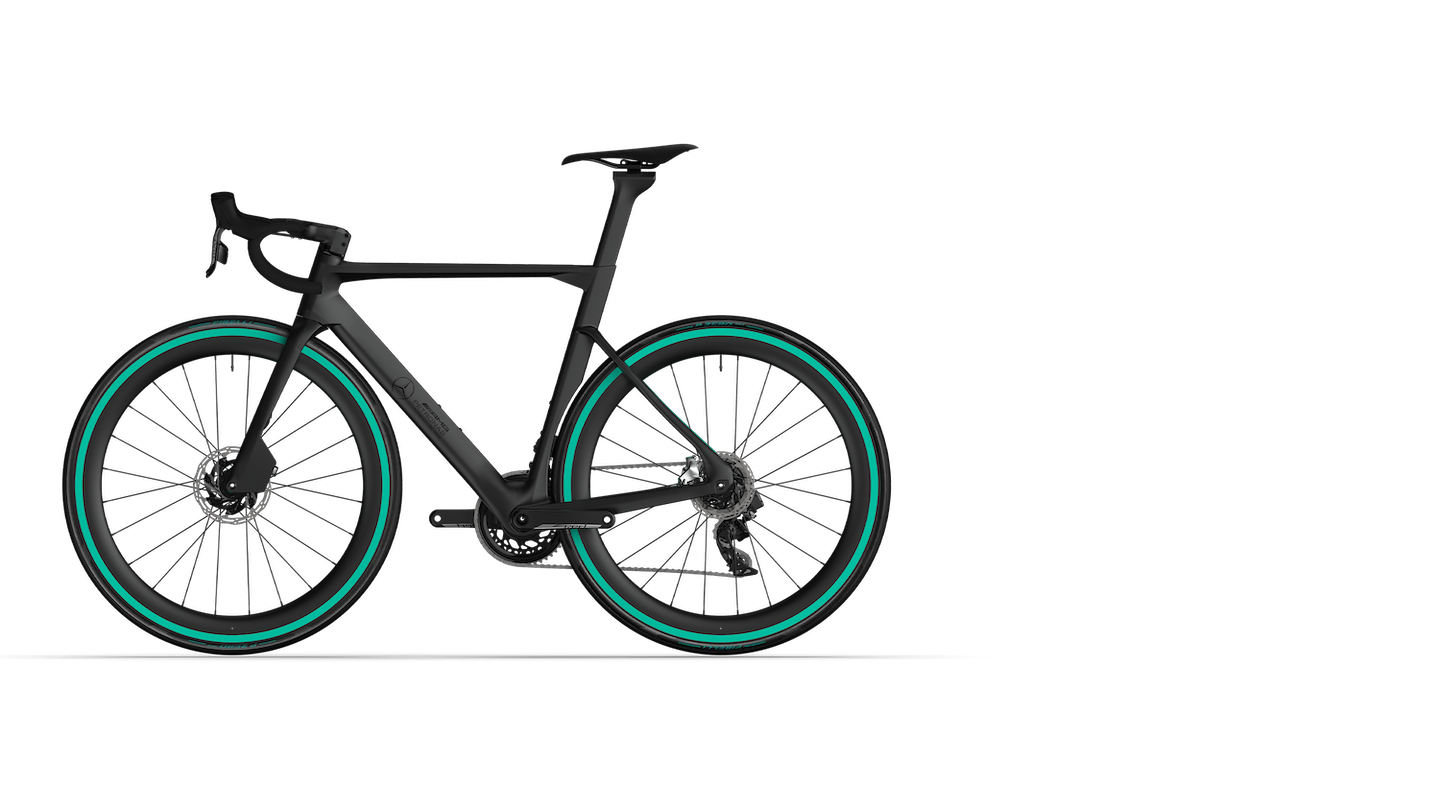

The Mercedes-AMG F1® V15 Road Edition is a high-performance carbon road bike built in the image of the team's race car. Like the car, it's designed for one purpose — to go exceptionally quick.
Size Guide - Road Bikes
Need help choosing the correct size? Contact our customer service team for help via the chat feature at the bottom of your screen.
Bike Size Guide (Road and Urban Editions)
Frame Size | Height (cm) | Height (in) |
---|---|---|
50 | 155-164 | 5'1"-5'4" |
52 | 165-173 | 5'5"-5'8" |
54 | 174-180 | 5'9"-5'11" |
56 | 180-189 | 5'11"-6'2" |
58 | 190-198 | 6'3"-6'6" |
- 2-year warranty
- Buy online or in-person at participating Mercedes dealers
- Easy assembly, ready to ride
- Made to order in 90 days
Speed Embodied
Unveiled each year in conjunction with the F1® Team car, the Road Edition V15 pays homage to the 8-time F1® Constructors' World Champions. Like the car, it has one purpose — to go fast.
An Emphasis on Performance
Aerodynamic optimized frame, 55mm deep profile carbon wheelset with DT Swiss 240 hubs, and integrated carbon bars combine for a very fast road bike weighing just over 7kg.
Integrated Efficiency
Mercedes-AMG F1® fully integrated carbon fiber cockpit integrates handlebars and stem, conceals all cabling, and is aerodynamically optimized to reduce drag. The use of carbon also reduces road vibrations for improved comfort.
Carbon fiber computer mount included.
Pro Quality, Everyday Reliability
Designed for the demanding needs of the world's top professional cyclists, SRAM’s top of the line RED eTap AXS drivetrain offers fast, dependable, and lightweight electronic shifting at its best.
Effortless Speed
55mm deep-profile Mercedes-AMG F1® Team carbon wheelset with Swiss engineered DT Swiss 240 high performance hubs reduce aero and rolling resistance for effortless acceleration and speed.
Brakes
SRAM RED eTap 2-piston hydraulic discs deliver SRAM’s best stopping power.

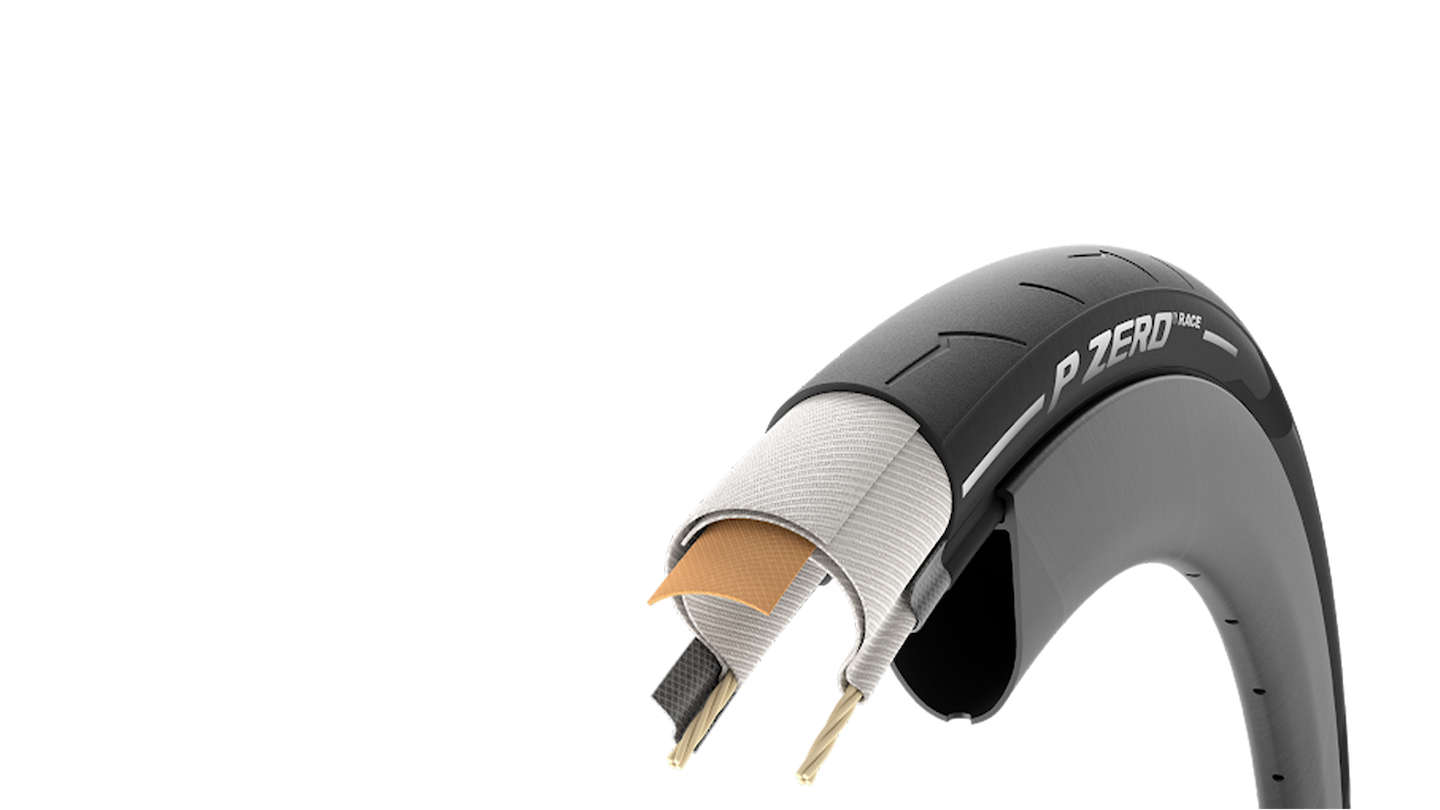

Tires
Pirelli P Zero Race tires gives riders the advantages of the tube-type technology in an all-around cycling tire for racing and high-performance riding.
Tech Specs
50, 52, 54, 56, 58
Carbon Fiber
Carbon Fiber
SRAM RED eTap AXS wireless electronic groupset, 12-speed
SRAM Red shifter
SRAM RED eTap 2-piston hydraulic disc brakes
55mm carbon fiber
Pirelli PZero 28mm
Carbon fiber integrated handlebars
Mercedes-AMG F1® signature matte black
Two years comprehensive
Also available as a rolling chasis and in a frame-only configuration
Geo Chart
50 | 52 | 54 | 56 | 58 | ||
---|---|---|---|---|---|---|
A Reach (MM) | 370 | 378 | 391 | 396 | 405 | |
B Effective Top Tube (C-C, CM) | 52 | 53.5 | 55 | 56 | 57.5 | |
C Seat Tube (C-T, CM) | 49 | 52 | 54 | 56 | 58 | |
D Seat Tube Angle | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 | |
E Stack (MM) | 506 | 530 | 536 | 550 | 574 | |
F Head Tube Length (MM) | 105 | 130 | 135 | 150 | 175 | |
G Head Angle | 71.5 | 71.5 | 72 | 72 | 72 | |
H Fork Length (Axle-Crown, CM) | 37 | 37 | 37 | 37 | 37 | |
I Bottom Bracket Height (MM) | 275 | 275 | 275 | 275 | 275 | |
J Bottom Bracket Drop (MM) | 69 | 69 | 69 | 69 | 69 | |
K Wheelbase (MM) | 968 | 984 | 994 | 1005 | 1021 | |
Offset (MM) | 45 | 45 | 45 | 45 | 45 |
